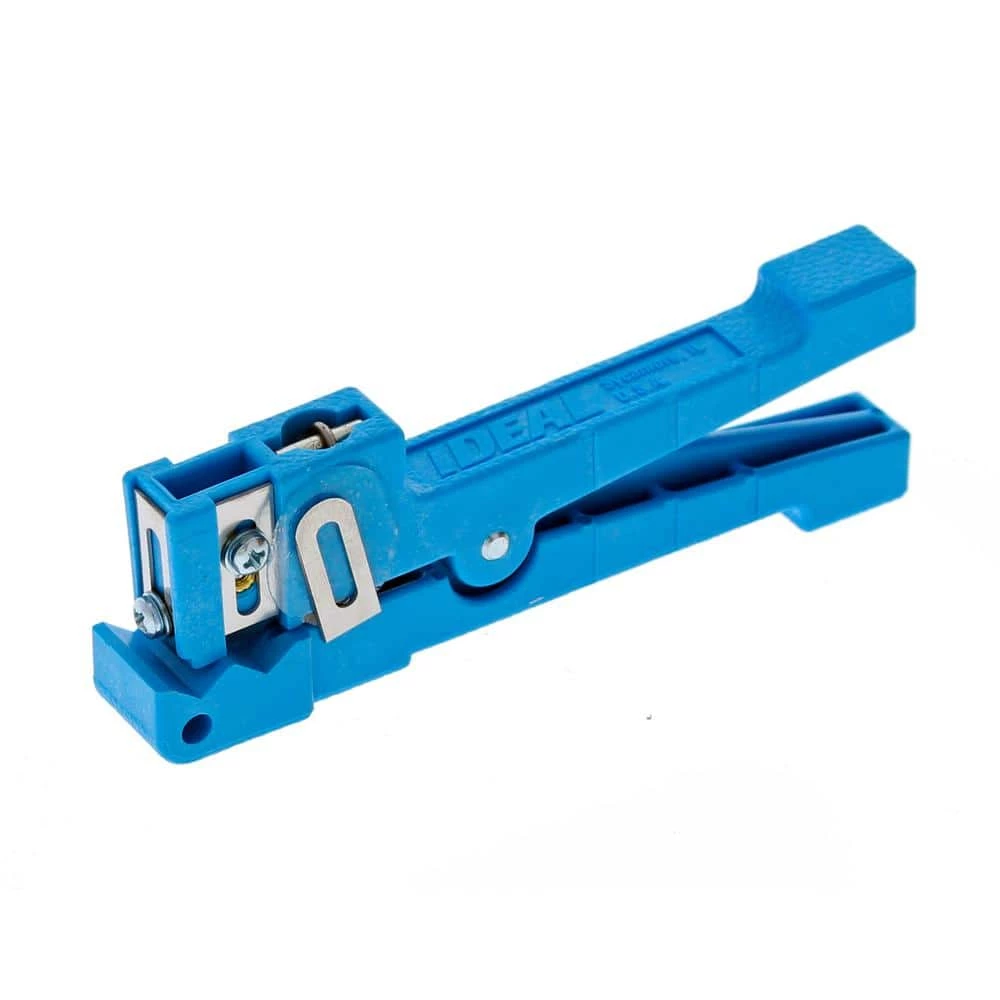

1/8 in. to 7/32 in. Coax/Fiber Ringer Stripper, Blue by iDEAL

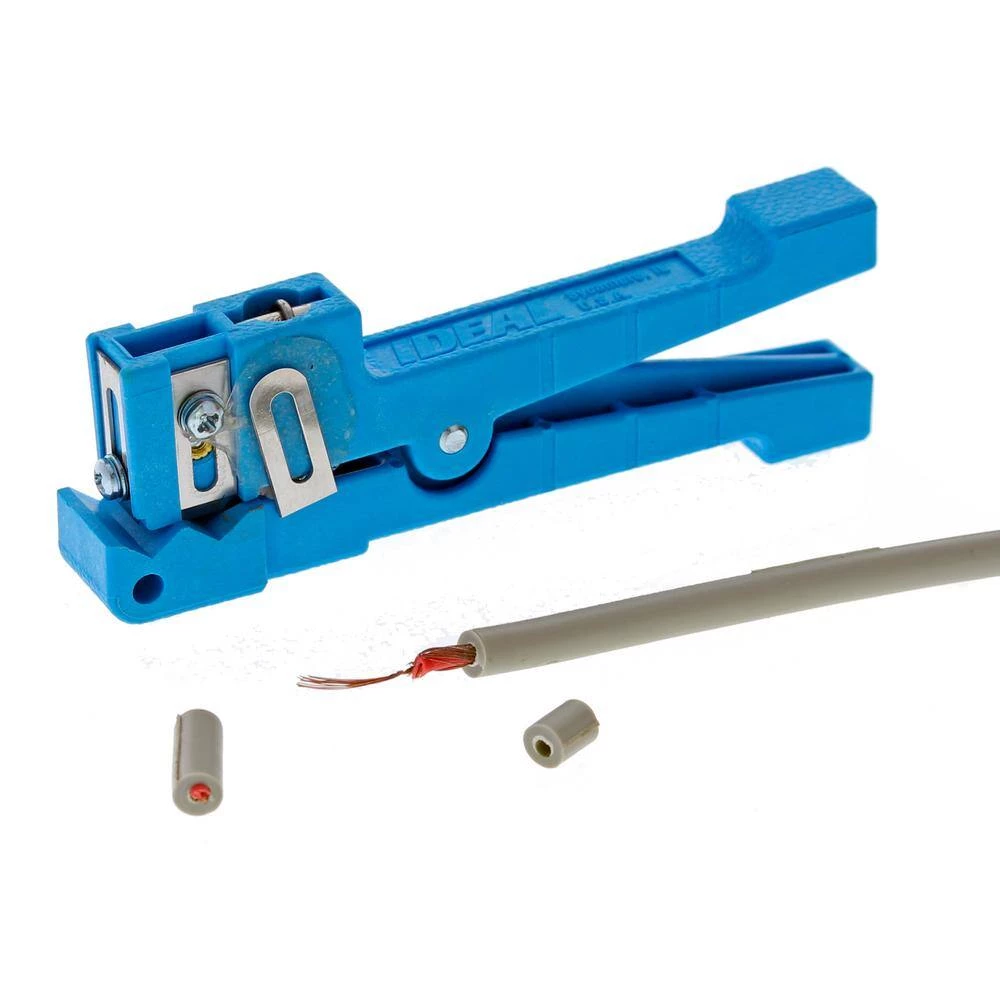

Blue Adjustable Ringer Versatile stripping tool allows for jacket and conductor stripping for many types of round cable, including fiber, coaxial and basic insulated conductors. This is a compact and lightweight prep tool that works well for specialty cable preparation where traditional fixed blade stripping tools just don’t work as needed for the application. The 45-163 includes three separate active cutting blades which are all able to be adjusted to the proper cutting depth via a Phillips screw setting for each blade. Blades can be individually set to score the jacket so the inner conductors or shielding do not get damaged. The tool can be used for jacket stripping or scoring, including mid-span access stripping, 2 step conductor preparation by having the 0.240 in. spaced side blades cut to different depths – one for jacket removal, the other for dielectric removal/conductor exposure. The front blade can be used to slit a jacket end or complete a mid-span cut.

• Strips round cable jackets and inner conductors up to 0.125 in./3.2 mm in diameter
• Adjustable blade depth settings allow for a precise strip for multiple cable types and sizes
• 0.240 in./6.1 mm blade spacing for 2-step or window strips
• Rounded edge slitting blade included
• Replacement blades: L-9225
