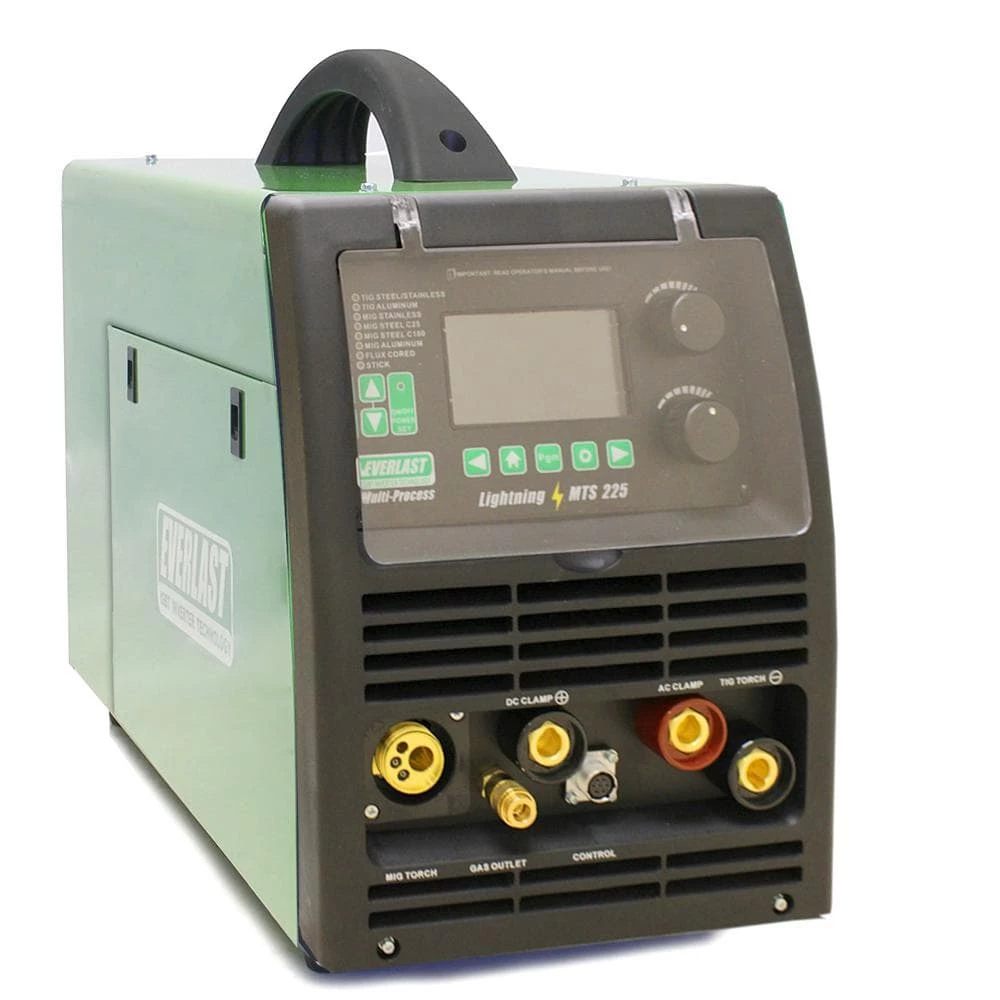

200 Amp LightningMTS 225 IGBT Digital Inverter AC-DC MIG/TIG/Stick Multi-Process Welder, HF/Lift TIG Start, 240-Volt by Everlast

Along with its big brother, the Lightning MTS 275, the Lightning MTS 225 is the latest in the heavy-duty MIG/TIG/STICK series to feature AC/DC TIG welding capability. This new series of features revised synergic function now called Power Set and now includes auto set parameters for all 3 modes. The Lighting MTS 225 is a 200 Amp unit that excels not only in features, it also excels with performance. The new design allows the user to view most all relevant settings simultaneously. This reduces scrolling effort and allows near instantaneous adjustment of all common parameters in use. The new PowerSET function allows the customer to enter basic operating parameters in MIG, TIG, or Stick mode, and automatically selects the proper Amps and Volts (where applicable) for the user, as well as a few other possible adjustments. This new unit also features a Flux-Core mode for operation with most common types of Flux Core wire (without gas/self shielding). As powerful as the welder is, it is also capable of operating on 120-Volt if the unit needs to be carried to the work. Of course, you’ll have reduced output, but you will not suffer for lack of available duty cycle. As far as operating duty cycle at full-tilt output, TIG and Stick feature 60% output and MIG features 35% at maximum amperage for the Process. That means, for MIG, at 200 Amp, you’ll have 35% duty cycle available.

• Exclusive MIG, AC/DC pulse TIG, and stick design

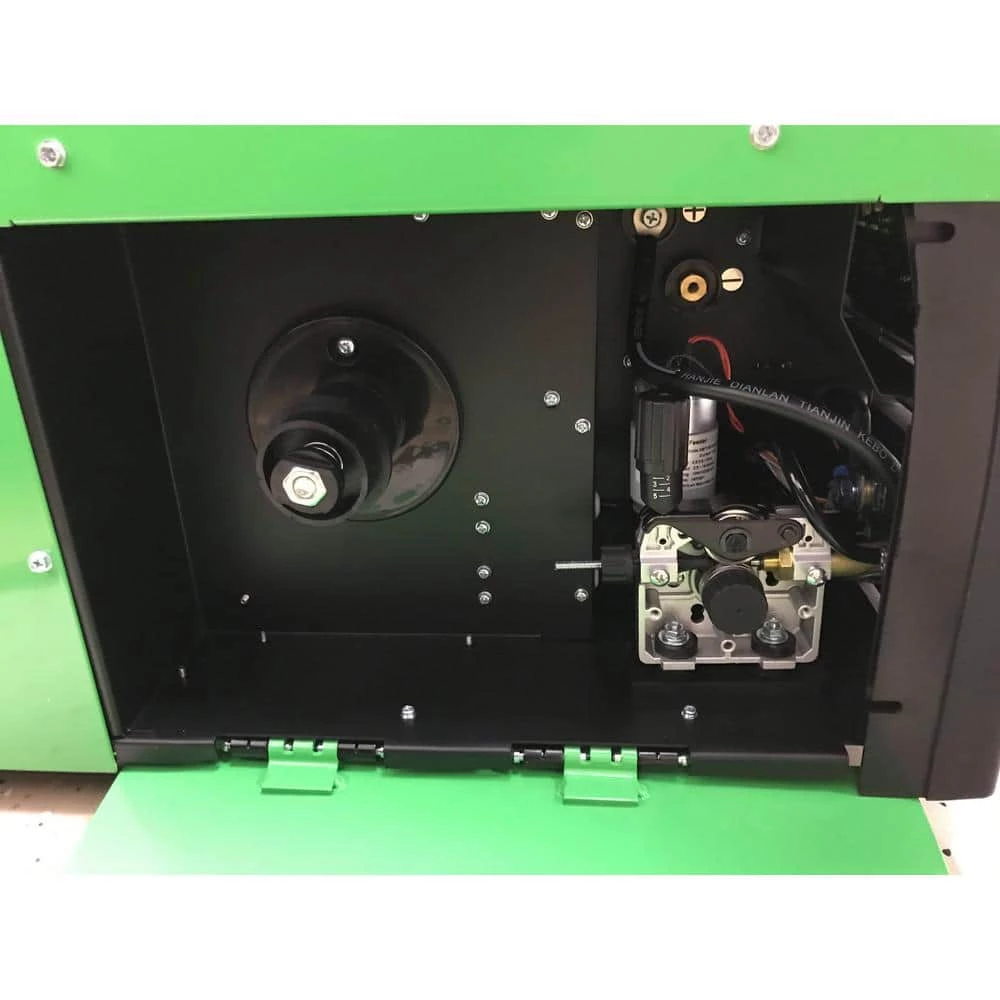

• Weld aluminum, stainless, or steel with the MIG function with wire diameter from 0.023 in. – 0.030 in. (additional driver roll sizes and types available up to 0.045 in. as option)
• AC capability on TIG allows user to weld aluminum, industry first for this type design
• Save up to 16 different programs with memory function that provides easy saving and recall of your favorite settings
• 200 Amp of MIG and TIG power offer more than enough power to get the job done, 160 Amp of stick welding power can be used with up to 1/8 in. welding rods
• Adjustable MIG wave arc force control manages slope/ inductance and fine tunes arc characteristics
• True DC CC/CV multi-process design eliminates needing or carrying multiple units for 1 job
• Synergic spool gun operation capability with optional spool gun, ideal for welding aluminum
• Operator friendly panel without complicated hidden menus or adjustments with grouped controls
• Adjustable burn-back control keeps the wire energized after wire has stopped feeding to allow the wire to melt back to a desired length without retrimming wire before restarts
• Adjustable pre and post flow for TIG and MIG operation improves over all weld quality
• Dual voltage design will operate on 120-Volt or 240-Volt output on 120-Volt is limited to 125 Amp MIG/TIG/ 100 Amp stick
