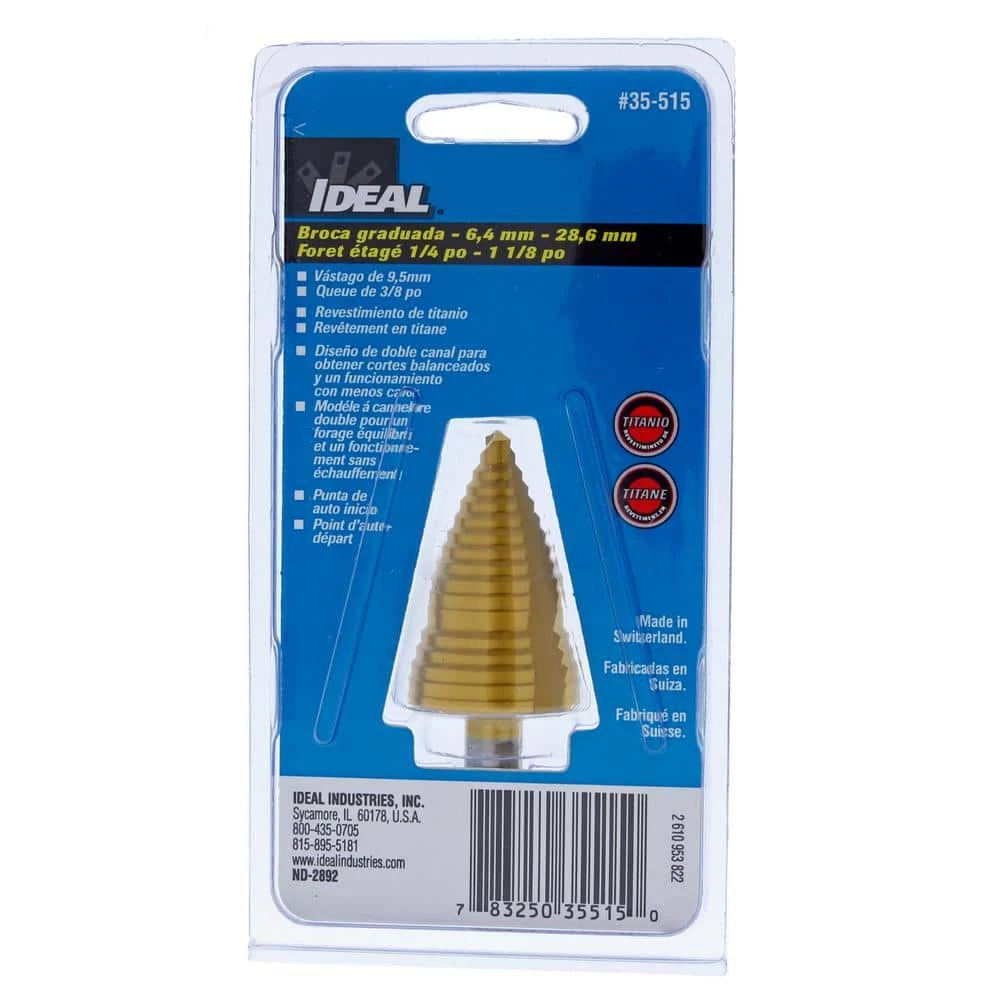

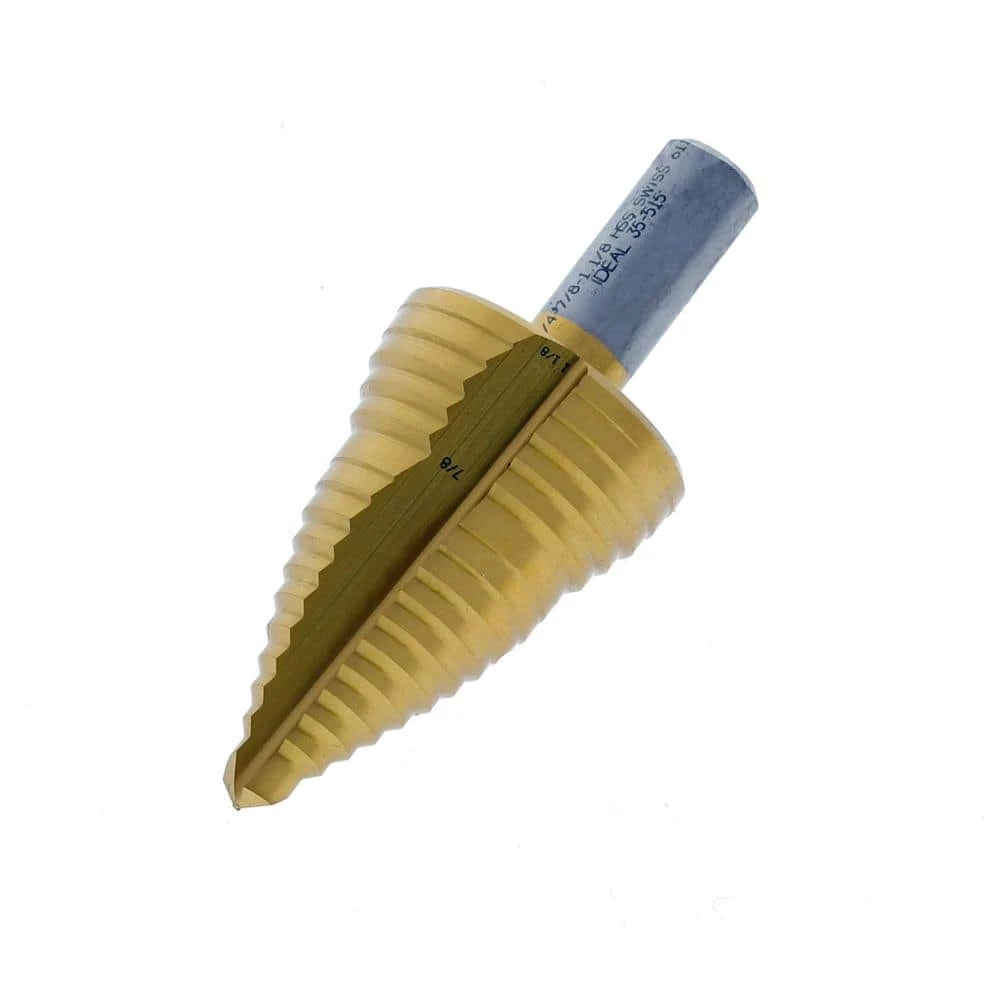

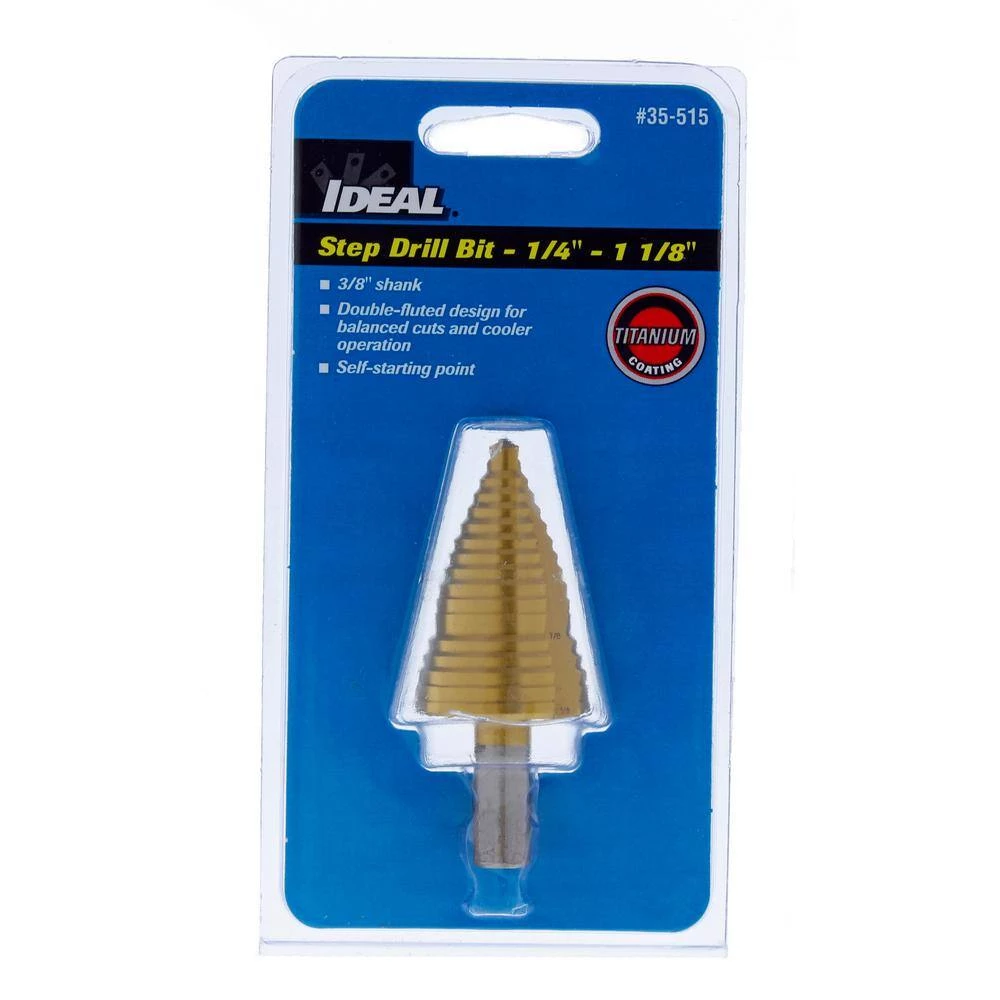

Step Drill Bit, 1/4 in. – 1 1/8 in. by iDEAL

Original price was: $116.59.Current price is: $72.29.

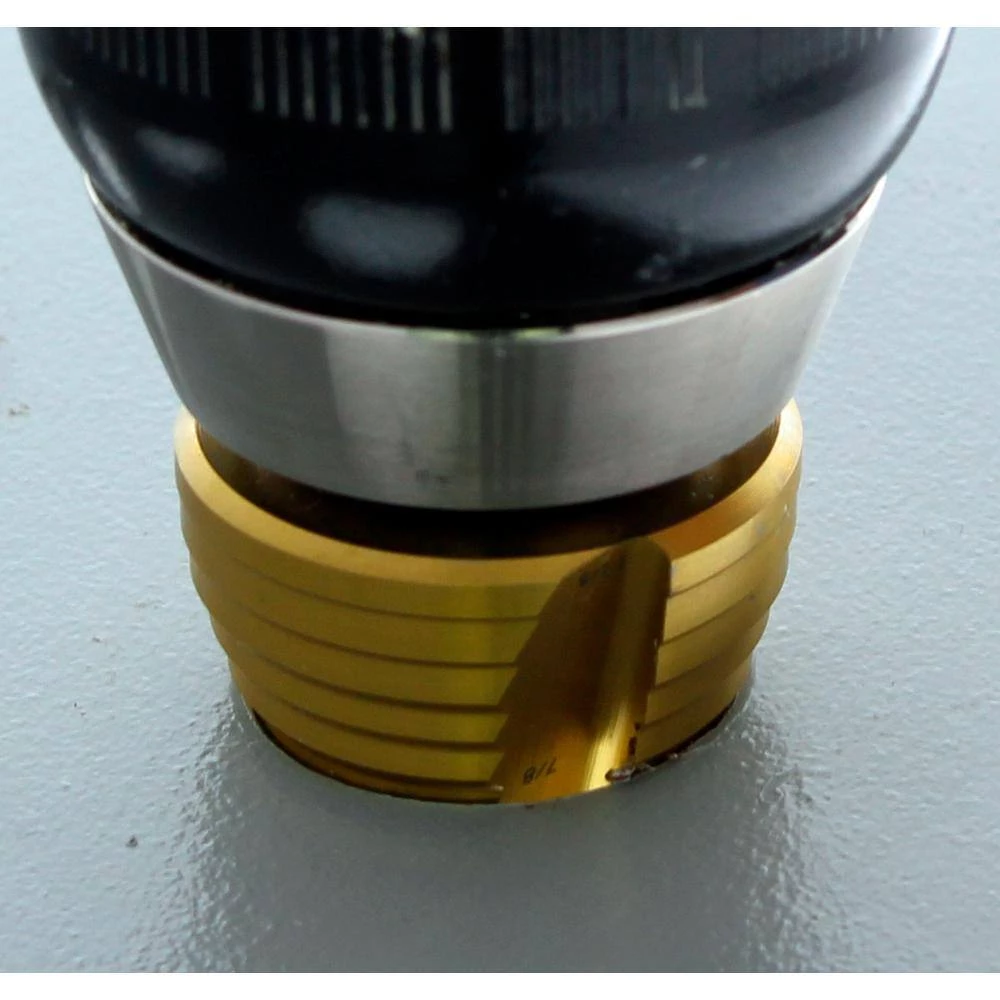

Drill holes quickly and efficiently
Titanium coating reduces friction for longer life

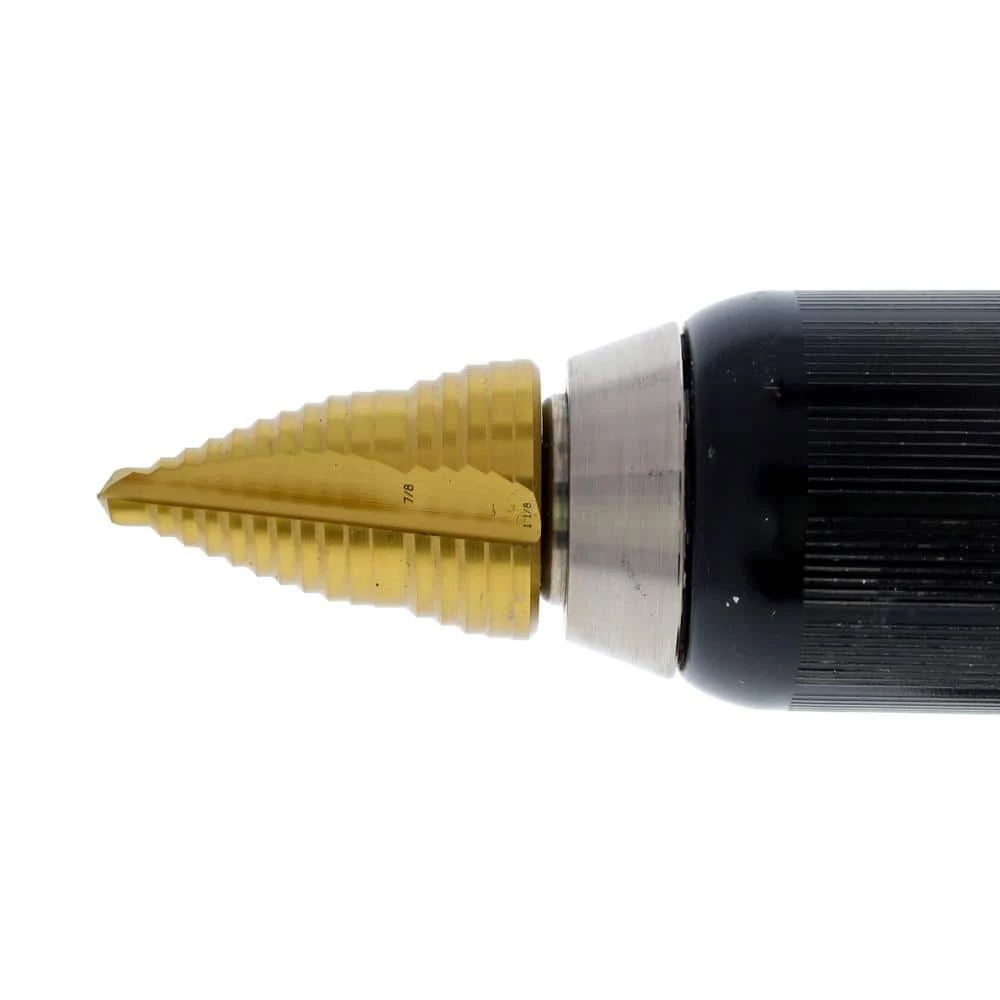

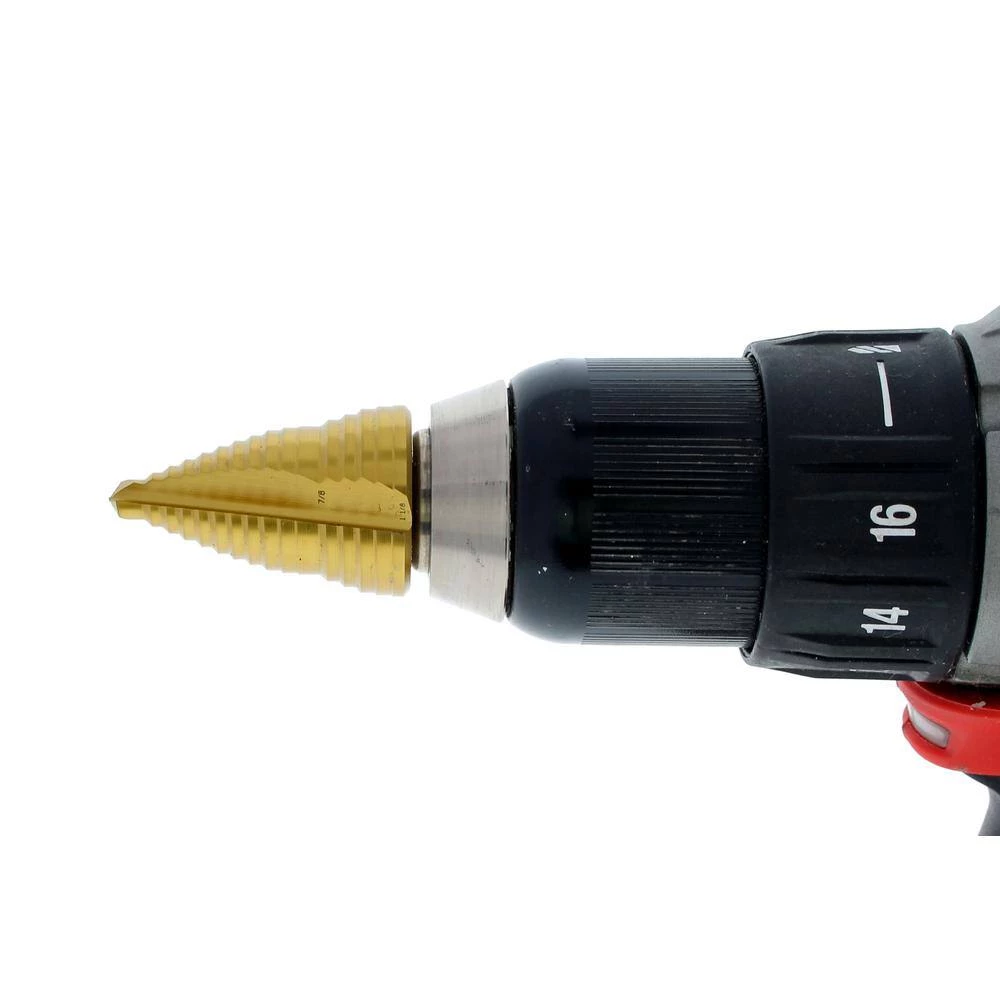

Fits all popular corded and cordless drills

Get Quality, Get More

Online assistance, always just a message away.

Quality that lasts, prices that don't.

Buy with Peace of Mind

IDEAL step drill bits for precise, repetitive drilling through the toughest materials including brass, carbon steel, cast iron, stainless steel, and more. These tough and reliable tools are constructed with a rugged titanium nitride exterior coating for protection, edge retention and corrosion resistance. Each step is gradually blended to ease stepping through hole sizes; reducing the need to keep changing drill bits. Split point design eliminates the need for a starter hole or punch and delivers three times faster starts, saving valuable time. The double-fluted design provides balanced cuts, more cutting surface compared to a single flute design, and cooler operation.

Titanium nitride coating dramatically extends bit life
Drills 16 different holes sizes 1/4 in. to 1 1/8 in., Step Increments 1/16 in., Step Thickness 1/16 in.
Split-point design for faster starts
Unique double-fluted design for balanced cuts and cooler operation
Shank 1 in. length
Max operating speed 1500 RPM
Do not use in hammer drills

Bit Material	Titanium
Drill Bit Type	Step
Drill Bit Type(s) Included	Step
Features	No Additional Features
Individual/Set	Individual
Material Application	Aluminum,Cast Iron,Duct/Sheet Metal,Stainless Steel,Steel
Number of Pieces	1
Returnable	90-Day
Shank Style	3-Flat
Tools Product Type	Other
Bit Diameter	1-1/8 in
Bit Length (in.)	1.75
Drilling Depth (in)	0.06
Shank Diameter	3/8 in
Step Increments (in.)	0.06 in
