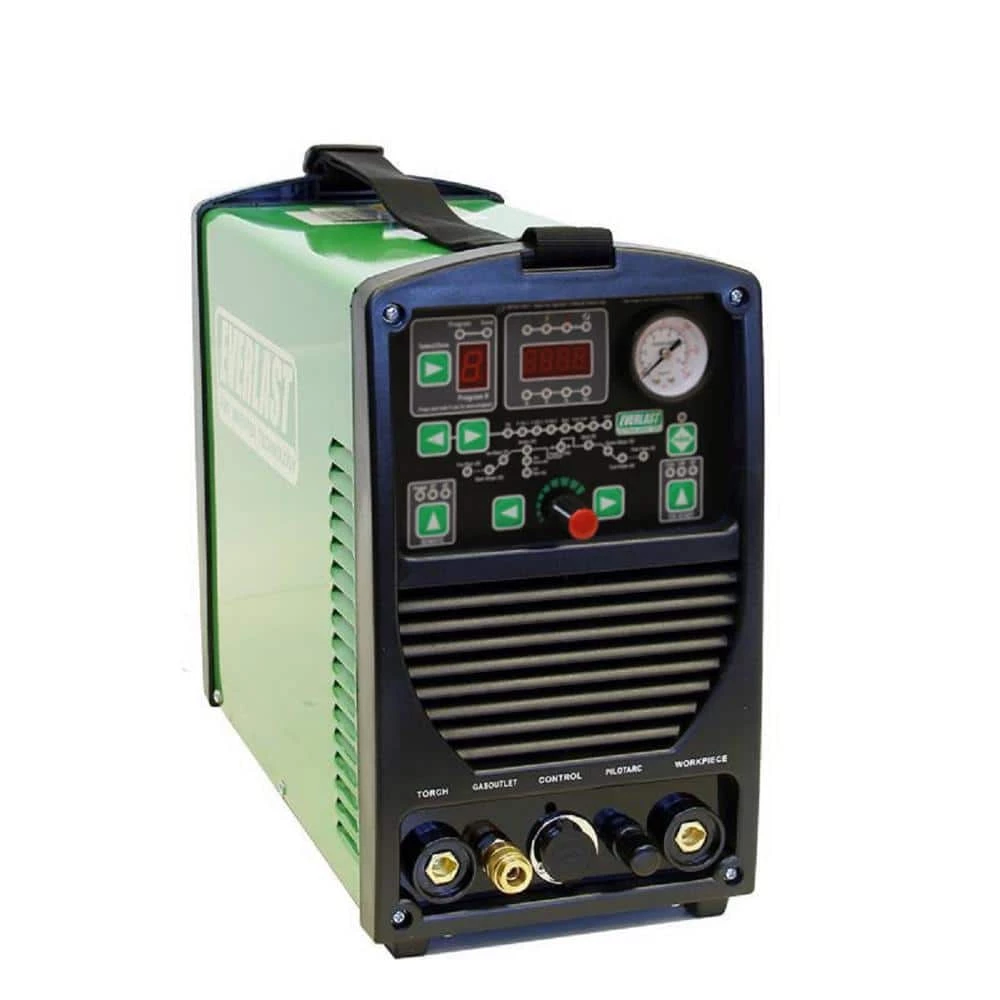

UltraArc 205 TIG/Stick/Plasma Welder, Dual Voltage by Everlast

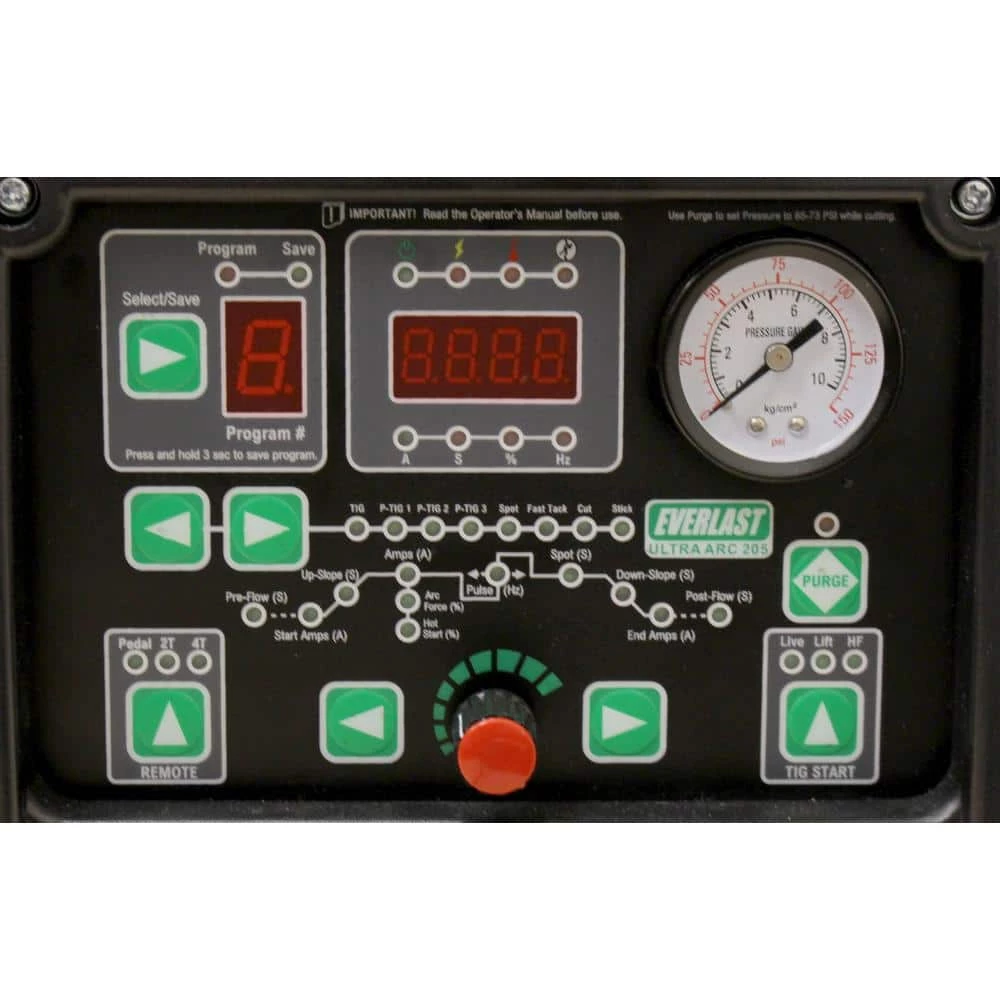

The Ultra-Arc 205 combines digital reliability and control with a simple, intuitive users interface. As a replacement for the Power-Ultra line of DC TIG, Stick and Plasma multi-process welders, the new Ultra-Arc features improved and additional TIG features, more Stick features, and a stable digitally controlled plasma cutter. As far as TIG features go, it is close in comparison to the top tier DC Power i-TIG 200T. Features are similar, but with a simplified adjustment process for TIG Pulse, featuring 3 field tested Pulse Programs which allow the user to adjust frequency, but rely on solid, proven pre-programmed settings for Pulse Amp and Pulse Time on. This allows almost anyone to operate the pulse with little additional instruction or explanation. In Stick mode, well, adjustable hot start and arc force are 2 popular features that improve stick performance over the older Power-Ultra series with up to 5/32 in. electrode capability (depending upon the class rod, some may only be 1/8 in. max). Of course, with new digital control of the Plasma, cutting quality has been improved over previous models. 2 new features available are a spot timer, and a completely new Fast Tack feature. With the improved design and performance, the Ultra-Arc has no parallel or competition for that matter. Where else will you find a plasma that is capable of cutting up to 3/4 in. included with a DC TIG and Stick welder for a price like this.

• All-in-1 portability offers new solution for small garages, farms, and portable welding activities
• Compact design allows the unit to go anywhere straight forward controls, with 3 pulse settings and adjustable pulse frequency

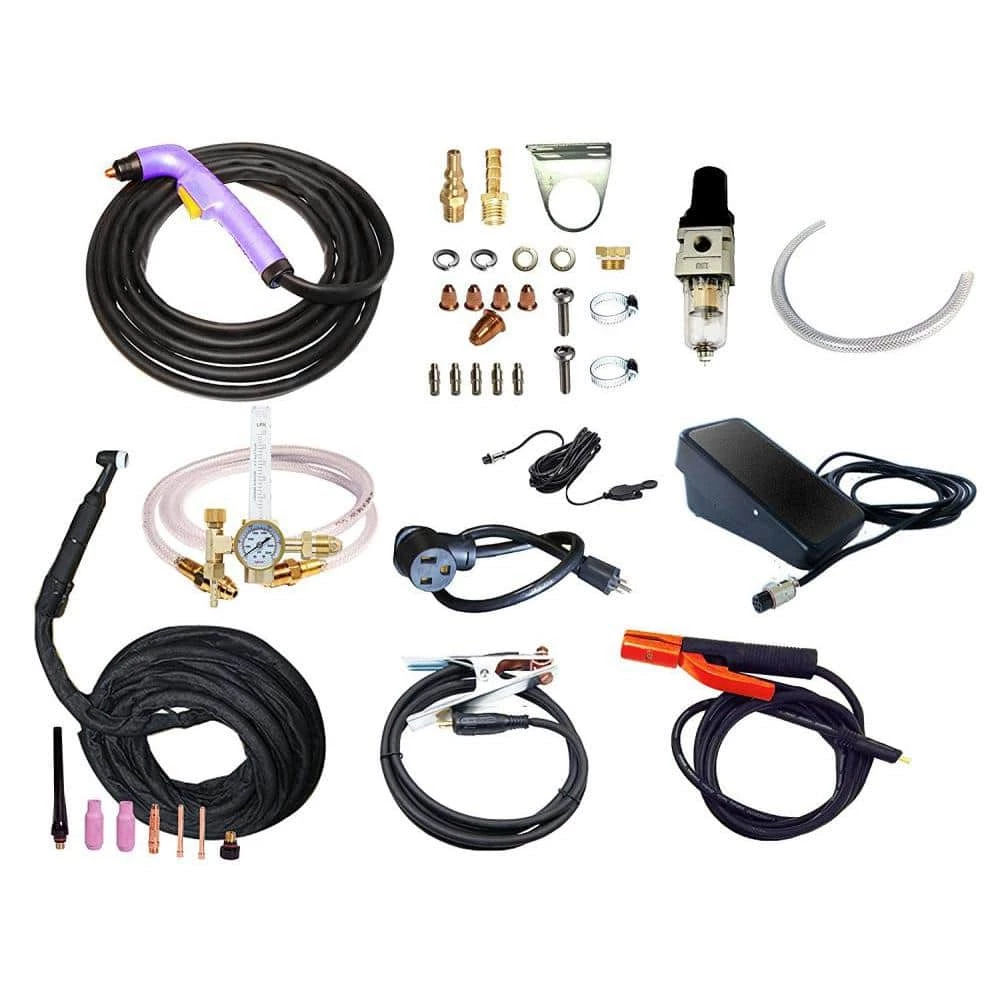

• Quick change out of torches for easy change from TIG to plasma back to TIG
• Improved reliability due to completely new digital inverter design
• High duty cycle of 60% at max rated amperage for TIG, 35% for stick and plasma at max rated amperage
• Front air pressure gauge for easy verification of air pressure
• Over current/duty cycle protection circuit warns and interrupts welding/cutting to ensure safe, and long life operation
• Clean and smooth plasma cuts on virtually any metal
• Welds steel, stainless steel and titanium (the PowerUltra is DC output only, and is not suitable for welding aluminum, although it can cut aluminum)
• Advanced TIG functions for DC TIG welding
• 3 pre-programmed pulse functions with adjustable pulse frequency (.1-150 Hz) in each program
• Dual voltage design allows unit to be operated on 120-Volt or 240-Volt (output is reduced in 120-Volt operation to approximately 125 Amp TIG/ 95 Amp stick/25 Amp plasma)
